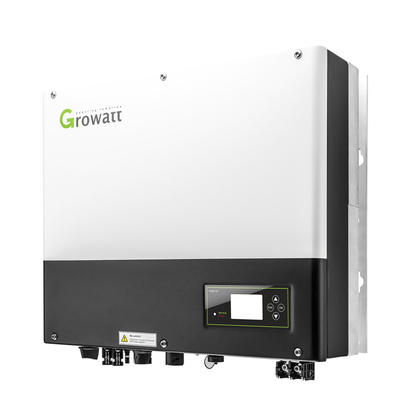

Inverter Model | SPH3000 | SPH3600 | SPH4000 | SPH4600 | SPH5000 | SPH6000 | ||||||
DC input data | ||||||||||||
Max. recommended PV power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W | ||||||
Start voltage | 150V | |||||||||||
Max. PV voltage | 550V | |||||||||||
PV voltage range | 120V-550V | |||||||||||
MPPT voltage range /Nominal voltage | 150V-550V /360V | |||||||||||
Max. input current of tracker A/B | 12A/12A | |||||||||||
Number of MPP trackers / strings per MPP tracker | 2/1 | |||||||||||
AC Output | ||||||||||||
Rated AC output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W | ||||||
Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA | ||||||
Max. output current | 16A | 16A | 22A | 22A | 22A | 27A | ||||||
Nominal AC output voltage | 230V | |||||||||||
Nominal grid frequency | 50/60Hz | |||||||||||
Power factor at rated power | 1 | |||||||||||
THDI | <3% | |||||||||||
AC output power(Backup) | ||||||||||||
Max. output power | 3000W | |||||||||||
Rated AC output voltage | 230Vac | |||||||||||
Rated AC output frequency | 50/60Hz | |||||||||||
Automatic switchover time | <0.5S | |||||||||||
Battery data | ||||||||||||
Battery voltage range | 42~59V | |||||||||||
Max. charging voltage | 58V | |||||||||||
Max charging and discharging current | 66A | |||||||||||
Max charging and discharging power | 3000W | |||||||||||
Battery type | lithium /Lead-acid | |||||||||||
Deep of discharging | 80%DOD/50%DOD | |||||||||||
Capacity of battery | 3~12kWh | |||||||||||
Efficiency | ||||||||||||
Max. efficiency | 97.5% | 97.5% | 97.5% | 97.6% | 97.6% | 97.7% | ||||||
Euro European efficiency | 97.0% | 97.0% | 97.0% | 97.1% | 97.1% | 97.1% | ||||||
MPPT efficiency | 99.5% | |||||||||||
Protection devices | ||||||||||||
DC switch | yes | |||||||||||
DC reverse polarity protection | yes | |||||||||||
Battery reverse protection | yes | |||||||||||
Output over current protection | yes | |||||||||||
Output over voltage protection | yes | |||||||||||
Ground fault monitoring | yes | |||||||||||
Grid monitoring | yes | |||||||||||
Integrated all - pole sensitive leakage | yes |
