Главная страница /Продукция/С инвертора MPPT решетки солнечного/Hot Selling Hybrid House Use Inverter Charger 6KW 7.6KW MPP Split Inverter Storage Power Battery With Best Quality

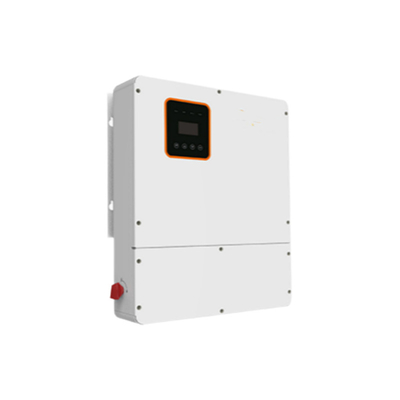

Hot Selling Hybrid House Use Inverter Charger 6KW 7.6KW MPP Split Inverter Storage Power Battery With Best Quality

1 piece
MOQ
Hot Selling Hybrid House Use Inverter Charger 6KW 7.6KW MPP Split Inverter Storage Power Battery With Best Quality
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: R7.6KLN
Input Voltage: 125-500V
Output Voltage: 120-240V
Output Current: 34.5A
Output Frequency: 50Hz/60Hz
Output Type: DUAL
Size: 430*220*710mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE UL TUV, IEC CE TUV
Warranty: 5 YEARS
Weight: 41KG
Product name: Hybrid Inverter Solar
Battery type: Lead Acid \ Lithium \ Gel
Battery Voltage: 40-58V
MPPT Efficiency: 98-99%
Cooling: Natural
MPPT voltage range: 125-500V
Power: 7.6KW
Inverter type: Hybrid Power Inverter
Application: House use
Основная информация
Сертификация: CE UL TUV, IEC CE TUV
Model Number: R7.6KLN
Оплата и доставка Условия
Packaging Details: CARTON+WOODEN+PALLET
Supply Ability: 100000000000000 Piece/Pieces per Month
Характер продукции
Product Description

Hybrid Storage Solar System

Hybrid Inverter Advantage

-Flexible
The model covers 7.6kw-11.4KW, with unied appearance design.
Wide battery input range, compatible with a variety of lithium batteries and lead-acid.

-Reliable
Battery reverse connect protection, charge&discharge are controlled by intelligent software to improve the battery life. Input and output lightning protection, PV arcing detection.
Discharge at full power and disconnect the charger automati-cally when the battery is full. Off grid full power output, transient 1.5 times overload, soft start mode, with air conditioning, water pump and other loads.
Insulation detection, leakage battery, ground fault detection, island protection to prevent electric shock.

-Grace
Fashionable appearance, convenient wiring,IP65 design, natural cooling, external fan free design, low noise, improve the whole machine life.

-Advanced
Maximum efficiency up to 98.2%.4 independent MPPT design, making full use of light energy in different directions. Distributed virtual power station management node. Remote monitoring of computers and mobile phones.
Specification
MODEL
R5KLNA
R6KLNA
R7.6KLNA
R8KLNA
R10KLNA
R12KLNA
Input PV
Max. power(kW)
6.5
7.8
10
10.4
13
15.6
MPPT number
4
Start-up voltage
120V
MPPT voltage range
125-500V
Max PV input voltage
550V
Each MPPT input current
12A
AC output
Rated output power(kVA)
5KVA
6KVA
7.6KVA
8KVA
10KVA
12KVA
AC output voltage
120-240V/211~264V
Frequency (Hz)
50/60HZ(45 to 54.9Hz / 55 to 65Hz)
Max output current
22.7A
27.3A
34.5A
36.4A
45.4A
50A
AC reverse charging
YES
Power factor
0.8leading…0.8lagging
THDI
< 2%
Battery
Battery voltage range(V)
40-58
Max. charging voltage(V)
50
Max. charge/discharge current(A)
120/120
135/135
135/135
190/190
210/210
240/240
Rated frequency (Hz)
50/60HZ
Battery type
lithium /Lead-acid
Communication interface
CAN/RS485
EPS output
Rated power (kVA)
5
6
7.6
8
10
12
Rated output voltage(V)
120-240V/211~264V
Rated output current(A)
24
28.8
36.2
38.3
47.8
57.6
Rated frequency (Hz)
50/60HZ
Automatic switching time (ms)
<20
THDu
<2%
Overload capacity
125%, 60S/150%, 1S
General data
Max.efficiency
≧98.2%
North American efficiency
≧97.2%
Ingress protection
IP65/NEMA 3R
Noise emission (dB)
<25
<29
Operation temperature
- 25℃～ 60℃
Cooling
Natural
Relative humidity
0 ~95%（non-condensing）
Altitude
2,000m(>2,000 Derating)
Dimensions W*D*H (mm)
430*220*710
Weight
41KG
Isolation transformer
NO
Display and communication
Display
LCD,Touch screen
Interface:RS485/WIFI/4GCAN/DRM
YES
Safty standard
UL1741SA all options,UL1699B,CSA22.2
EMC
FCC Part15,Class B
On-grid
IEEE 1547,IEEE2030.5,Hawaii Rule 14H,Rule 21 PhaseI,II,III,NRS
Application
Packaging and Delivery
Company Profile
Why Choose Us
1.Complete product certification
Specializing in the R&D, production and sales of solar cells, modules and PV power generation systems . Our products have passed international certifications such as TUV,/CE,/CEC,/Inmetro etc.
2.Leading Technology
We have been in this field for more than 15 years and have professional technical teams&advanced technology research &development
all over the world.Our emphasis on product innovation has allowed us to remain at the tehnological forefront of the solar PV
industry.
