Skollsun high quality home 600 watt balcony solar system 600w small on grid solar power system 600 watt balcony solar panel

1 piece
MOQ
Skollsun high quality home 600 watt balcony solar system 600w small on grid solar power system 600 watt balcony solar panel
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 5years
Free installation service: NO
Model Number: BP12
Application: Home
Solar Panel Type: Monocrystalline Silicon
Battery Type: Lithium Ion, NONE
Controller Type: NONE
Load Power (W): 10KW, Others, 800w, 1200w, 400w
Work Time (h): 24 hours
Certificate: CE TUV IEC
Pre-sales project design: Y
Power: 100W
Open Circuit Voltage: 23.8V
Short Circuit Current: 6.39A
Operating Voltage: 16.5V
Operating Current: 6.06A
Size: 1055*610*3mm
Efficiency of Cells: 22.8%
Interface Type: MC4
Weight: 2.21kg
Material: Monocrystalline cells
Основная информация
Сертификация: CE TUV IEC
Model Number: BP12
Оплата и доставка Условия
Packaging Details: Inner box size: 590x90x705mm Outer box size: 610x110x735mm
Supply Ability: 10000 Piece/Pieces per Day
Характер продукции

Specific size can be customized

What is a balcony power plant?

A balcony power plant enables the simple use of solar energy without time-consuming installation. The plug-in solar power plants are available as a complete package with solar panel and inverter. We explain how a balcony power plant works, how everyone can contribute to the ecological energy revolution and what must be taken into account when operating it according to standards.

Protect the climate and produce your own green electricity – with a balcony power plant, this is possible for anyone with abalcony or terrace. Balcony power plants are also popularly called plug-in mini-PV systems, plug-in solar systems, plug & play solar systems or mini solar systems. These are small solar systems that usually consist of only one or two solar panels and supply the generated electricity to the household grid through a wall outlet. The generated electricity is usually used for personal consumption and not for sale, given the amount of electricity generated. Another benefit of a solar power plant is the reduction in electricity costs, as own consumption lowers electricity costs.

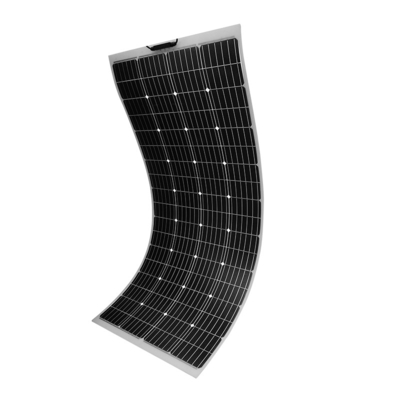

Flexible Solar Panel(customizable）

Solar Panel Type: Monocrystalline Silicon
Cells: mono--crystalline silicon
Mounting Type: Balcony
Power: 100W
Open Circuit Voltage: 19.8V
Short Circuit Current: 6.39A
Operating Voltage: 16.5V
Operating Current: 6.06A
Efficiency of Cells: 22.8%
Interface Type: MC4
Size: 1055×610×3mm
Weight: 2.21kg

Specification

Power
200W
95W
85W
100W
Open Circuit Voltage
47.52V
21.2V
36.9V
19.8V
Short Circuit Current
5.33A
5.7A
2.88A
6.39A
Operating Voltage
39.6V
17.6V
30.8V
16.5V
Operating Current
5.05A
5.4A
2.75A
6.06A
Efficiency of Cells
22.5%
21%~23%
21%~23%
22.80%
Interface Type
MC4
MC4
MC4
MC4
N.W.
3.12kg
1.875kg
1.94kg
2.21kg
Size
1595×707×2mm
1050×540×3mm
1050×500×3mm
1055×610×3mm
Microinterver
HMI-300-1A
HMI-350-1A
HMI-400-1A
1.Suitable for AC component scenarios.
2.Integrated component-level quick shutdown makes rooftop power plants safer.
3.Supports reactive power compensation in accordance with standards such as EN 505 49-1:2019, VDE-AR-N4105:2018 and u1741.
4.Built-in relay to realize grid isolation protection.
5.Using Sub-1G wireless technology, the communication with Hemai gateway DTU is more stable.

Specification

Model
HMI-300-1A
HMI-350-1A
HMI-400-1A
ADAPTOR POWER（W）
240 ~ 405+
280 ~ 470+
320 ~ 540+
Maximum input voltage （V）
60
MPPT voltage range （V）

16 ~ 60
Start-up voltage （V）

22
Maximum input current（A）

12
13
14
Maximum input short-circuit current （A)

20
20
25
Rated output power（VA）

300
350
400
Rated output current （A）

1.30

1.52

1.74
Mode of communication

Sub-1G
Isolation mode
High frequency transformer galvanic isolation
Monitor
S-Miles Cloud Hemai monitoring platform
Grid-tied standards
EN 50549-1: 2019, VDE-AR-N 4105: 2018, UL 1741,
IEC/EN 62109-1/-2,IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3
Products Description
Company Profile

Shenzhen Desun Energy Technology Co., Ltd.

Desun was founded in 2009 and located in Shenzhen,and we are planning to set up in Malaysia.Desun has got the international certification of quality system ISO9001 in 2012 and also has received the TUV IEC61215 and IEC 61730 for our solar panels.With more than 10 years development,now we have about 250 staffs and 8000 ㎡ production area.In order to pursue higher quality, we constantly reform and innovate our encapsulation technology to enhance the competitiveness of our customers' products in the market.Desun has built friendly business relationship with IMI, WAKAWAKA, D-light, Eton, GoalZero,and so on.
Q :Are you manufacturer or trading company?
A : We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.

Q : What kind of certificates your products have?
A : CE,FCC,RoHS,PSE,MSDS,IC,UKCA,C-TICK

Q : What's your products MOQ?
A : No MOQ request.If you need do OEM&ODM, We provide you small MOQ for each item, it depends your specific order!

Q:What is your main product lines?
A: Mono/poly solar panel 0~500 watt, high efficiencysemi flexible solar panel,CIGS flexible solar panel,folding solar panel and other portable solar products.

Q : How about your delivery time?
A : Generally,our stock products would be shipped in 1-3 days after payment received. finally depends on order quantities.

Q : What's your warranty?
A : All our products will be 100% test before shipment. Warranty 1 years.

Q : What is the payment method?
A: We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
