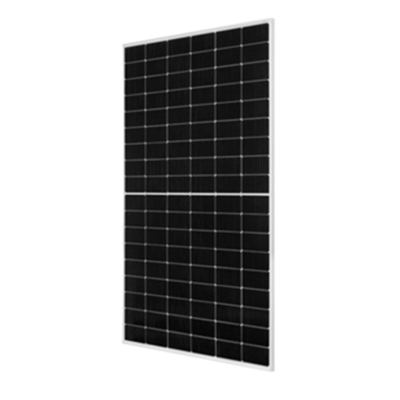

High Efficiency 166*83mm 585W Tiger Pro Bi Facial 78Tr Perc Mono Solar Panel Price Jinko 580W Bifacial Monocrystalline Module PV

1 Watt
MOQ
$0.20(1 - 499 Watts) $0.19(500 - 4999 Watts) $0.17(>=5000 Watts)
цена
High Efficiency 166*83mm 585W Tiger Pro Bi Facial 78Tr Perc Mono Solar Panel Price Jinko 580W Bifacial Monocrystalline Module PV
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: HS-M166H672- 435-455W
Cell size: 166*83mm
Type: Half Cell
Panel Dimensions: 2094*1038*35mm
Panel Efficiency: 21%
Warranty: 25 YEARS
Weight: 23.5kg
NUMBER OF CELLS: 72 pcs
tolerance: 0-+5
glass: 3.2mm low iron tempered suede glass
Основная информация
Model Number: HS-M166H672- 435-455W
Оплата и доставка Условия
Supply Ability: 1500 Piece/Pieces per Week
Характер продукции

Product Description:

MECHANICAL SPECIFICATION
Module Dimensions
2094x1038x35mm
Weight
23.5kg±3%
Cell
144monocrystalline cells
Junction Box
IP67, 3 diodes
Cable
4mm2, 350mm in length, length can be customized

power class
435
440
445
450
Nominal Max. Power (Pmax)
435W
440W
445W
450W
Open Circuit Voltage (Voc)
49.42V
49.86V
49.86V
50.1V
Short Circuit Current (Isc)
11.28A
11.35A
11.41A
11.48A
Max power Voltage (Vmp)
40.79V
40.99V
41.19V
41.39V
Max power Current (Imp)
10.67A
10.74A
10.81A
10.88A
Module Efficiency
20.02%
20.25%
20.48%
20.71%

Warranty

12 years product warranty
25 years power linear warranty

Grade A Materials
SOLAR CELL
1. 12BB
2. 158.75cells, 166cells, 182cells, 210cells High Efficiency
3. Anti-Pid

GLASS
1. Antireflective glass
2. Translucency of normal luminance is increased by 2%
3. Module efficiency is increased by 2%
4. Self-cleaning function
5. Service life is as long as 25 years
FRAME
1. Aluminum alloy frame
2. Boost bearing capability and prolong service life
3. Serrated-clip design tensile strength
4. Seal-lip design glue injection
5. Black / Silver Color Optional
JUNCTION BOX
1. Greatly reduce the amount of filling and potting.
2. Optimize the shell structure, and the anti-aging effect is significantly increased.
3. The diode adopts resistance welding, the connection becomes more safe and reliable
4. Better heat dissipation effect.
5. Save cable length and reduce costs

PV CONNECTOR
1. EVO2 Compatible / EVO2
2. 500N Tensile Strength
3. Female / Male / Fuse
Product Details:
Our Factory:

The Package:
The project Case:
FAQ:

Q1. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q2. What certification do you have?
CE/ISO report.
Q3. How about you after sales-service?
24 hours online service
Q4. How many day about delivery time?
1. Sample delivered in 3-5 days.
2. Order delivered in 15-20 days.

Q5: Do you offer guarantee for the products?
Yes, we offer 25 years warranty to our products
